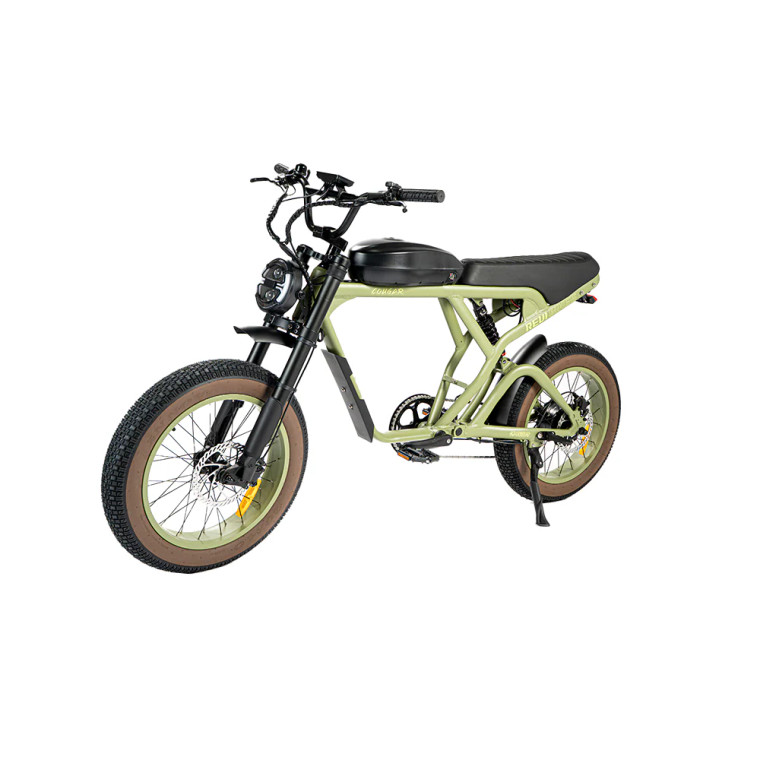

Revi Bikes Cougar Specifications
Available Models: Cougar, Cougar Pro
Performance
| Motor |
52V 80Nm (Cougar) / 60V 110Nm (Cougar Pro) |
| Peak Motor Output |
1000W (Cougar) / 1600W (Cougar Pro) |
| Top Speed |
34 MPH (Cougar) / 38 MPH (Cougar Pro) |
| Range |
60–80 miles |
| Pedal Assist |
5 levels |
| Sensor |
Cadence sensor |
| Drive Mode Options |
Class 1 / Class 2 / Class 3 / Sport / Off-Road |
| Default Class |
Class 3 |
Battery & Charging
| Battery Capacity |
20Ah |
| Battery Energy |
1040Wh (Cougar) / 1200Wh (Cougar Pro) |
| Battery Type |
Lithium-ion |
| Battery Cells |
Samsung cells (Pro model) |
| Charging Time |
Approximately 6 hours |
Brakes, Suspension & Wheels
| Brakes |
Front and rear hydraulic disc brakes |
| Rotors |
180mm front / 180mm rear |
| Front Suspension Travel |
60mm |
| Rear Suspension |
230mm length, 90mm travel |
| Tire Size |
20" x 4.0" |
Frame & Components
| Frame Material |
6061 aluminum alloy |
| Drivetrain Speed |
Single speed |
| Chainring |
48T |
| Saddle |
Elastic foam |
| Chain |
EPT anti-rust chain |
Display & Electronics
| Display |
Full color display |
| Display Functions |
PAS level, battery level, current speed, mode, odometer, trip, class mode selection |
| Lighting |
Front and rear lights with turn signals |
| Security Features |
NFC card start, concealed AirTag compartment under bell |
Size, Weight & Fit
| Bike Weight |
80 lbs with battery |
| Max Payload |
350 lbs |
| Recommended Rider Height |
5'1" to 6'6" |
Certifications
- UL 2849 certified
- UL 2271 certified
Included in the Box
- Cougar electric bike
- Charger
- Fenders
- NFC cards
- Passenger footrests
- Pedals
- User manual
- Toolkit
Range estimate shown by manufacturer is based on a 120 lb rider using PAS 1 in Eco mode on flat roads.
